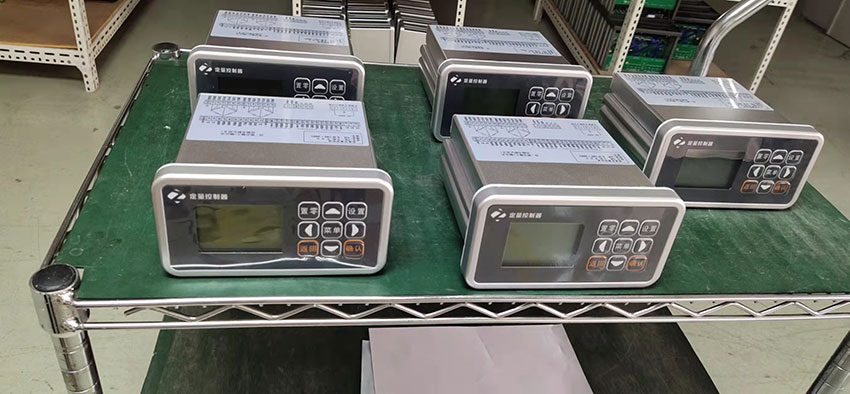

JY500C8 Electronic Quantitative Packaging Weighing Controller Filling Scale Controller

JY500C8 Series quantitative controller is mainly designed as the control unit of gravimetric quantitative packaging automatic weighing instrument with two weighing hoppers.
JY500C8 Series quantitative controller adopts English prompt words, direct interface which is easy to use and convenient to learn, applicable to building materials, chemical industry, food, iron & steel, fodder and other industries.

Main functions & features
1)LCD/OLED displays in English with a nice interface, easy to control and also with user friendly design.
2)Filling mode can be configured with single hopper or double hopper.
3)Three-level feeding flow control (fast, middle and fine), fine feeding can be configured manual or auto mode.
4)Can pre-save 11 groups of quantitative control parameters.
5)Can be configured several quantitative control operation for one bagging.

6)Various time delay functionality for avoid joggling.

7)Available to select the function of automatic zero-setting (with hopper) and automatic taring (no-hopper).
8)Inputs could be configured as material level detection function.
9)Outputs could be configured as clamping and vibrating (Drop/flag) function.
10)20 I/O (8 inputs/12 outputs), and the port functions can be
programmed (pre-assigned).
11)Input may be normally open or close by user configuration.

12)Can be selected pre-act auto adjustment.

13)Set the packaging batch number so that the machine automatically stops when reaching the preset batch.
14)It has a filling accumulative function, and the result of accumulation can be output from the print output interface.
15)It has a sew mechanism controlling function.
16)It has a non-object calibration function.
17)It has I/O test function so that trouble shooting of the electric circuit.

18)Switching power supply and over-voltage protection circuit are used for adapting to a large power supply variation.

Shenzhen Zhuohe instrument Co., Ltd. specializes in providing high speed and high precision weighing controllers with strong anti-interference ability, good stability and long service life.Buy cost-effective weighing controller welcome to contact us!
